CLABER

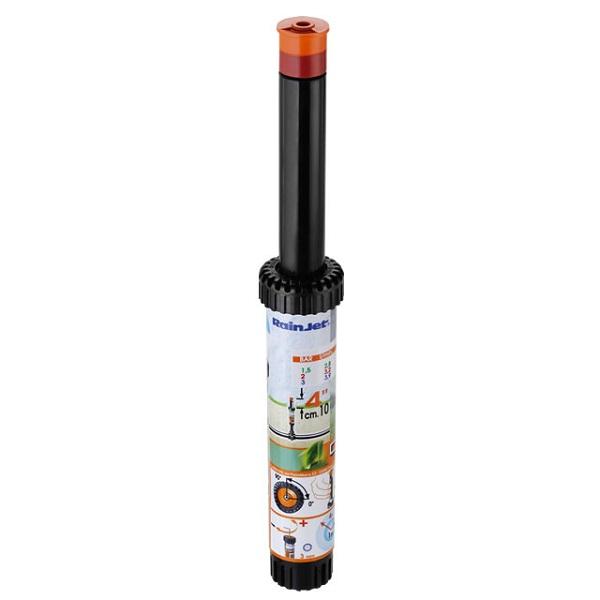

Claber 90Ø Jet Pop Up 4"

  • Shock-proof and weather resistant
  • Adjustable jet range
  • Washable filter
  • Simple installation and perfectly watertight

  • A professional quality pop-up sprinkler for underground irrigation systems in home gardens.
    The nozzle has a special design that guarantees the utmost uniformity in irrigation over a 90° area with minimum water consumption.
    Equipped with a jet range adjustment screw with a hexagonal insert, return spring in resistant, waterproof stainless steel, high filtering power filter, self-lubricating gear and no-runoff rubber valve with antifreeze device.
    The choice of materials and quality of the production process are the guarantee of total reliability in any type of installation.
    The nozzle has a specially designed profile to ensure uniform and balanced water distribution.
    Stainless steel jet range adjustment screw.
    The standard 1/2” female connector allows it to be mounted on existing systems.
    Height from ground 4” (10 cm).

    Hydraulic features
    Bar Angle l/min Range (m) Distance (m)
    1,5 90° 8,6 2,8 3,3 4,6
    2 90° 9,6 3,2 3,5 4,9
    3 90° 12,6 3,9 4 5,7
    • Inlet thread: ½"
    • Water flow: adjustable
    • Maximum covered area: 12,6 m²
    • Maximum jet width (diameter): r 4,0
    • Water flow: 3,9 l/min
    • Working angle: 90°
    • Height from ground: 4"
    • Width: Ø37 mm
    • Height: 160 mm
    • Depth: Ø37 mm
    • Weight: 64 gr.
